For those
of you looking for sliders for the P38...your time has arrived.
The basic design is a 2" x 6" x 1/4" wall box tube welded to are
pair of custom mounts. The mounts are more or less U shaped and is held in
place by a 3/4" bolt that goes through existing holes in the frame. The
mounts encompass the frame at some if it's strongest points. The mounting
brackets are made in such a way that they are certainly stronger than the Range
Rover frame. The Box tubing sits about 1/4" under the sill and extends out
to be in plane with the outer edge of the tires. The bottom of the slider is
slightly below the bottom of the frame providing much needed protection for the
Transfer case and exhaust system. The
overall design also provides for some additional side impact protection.
They are extremely strong and have been trail tested. You can use a jack under
the sliders to raise the entire side of the Ranger Rover if you would like.
Our methodology was to build a slider that could be attached to the P38 Range
Rover without the need for other vehicle modifications and to be strong enough
to take any type of impact possible. To do this a frame mounting option had to
be found with existing holes for any hardware. So, the challenge became to
construct brackets in such a fashion that they could take the abuse with out
damage to any other components.
The result, two brackets on each side that encompass 3 sides of the frame (all
but the top) and use one 3/4" bolt to connect the side plate together, and
pin the bracket to the frame. The Steel used in the brackets is all 1/4 plate,
which is by far stronger than the 14-gauge sheet metal used to build the Rover
frame. The actual slider it self is pretty simple.... brut strength, a 2"
x 6" piece of structural box tubing is used for the slider it self. The
brackets extend almost all the way out to the edge of the box tubing, and are
welded on on 2 of the 4 sides.
You ask, "Where are the frame attachment point?" The forward bracket
encompasses the frame where the Transmission cross member connects. The
rearward bracket encompasses the frame where the rear-trailing arm bolts to the
frame. Both of these points are strong structural points of the frame and are
designed for high dynamic loading.
Cost:
$700 a
pair with all mounting hardware
$400
Brackets only (you build the rails)
Send me
an email at JPoehlman@msn.com if you have
any questions or are interested in getting a set.

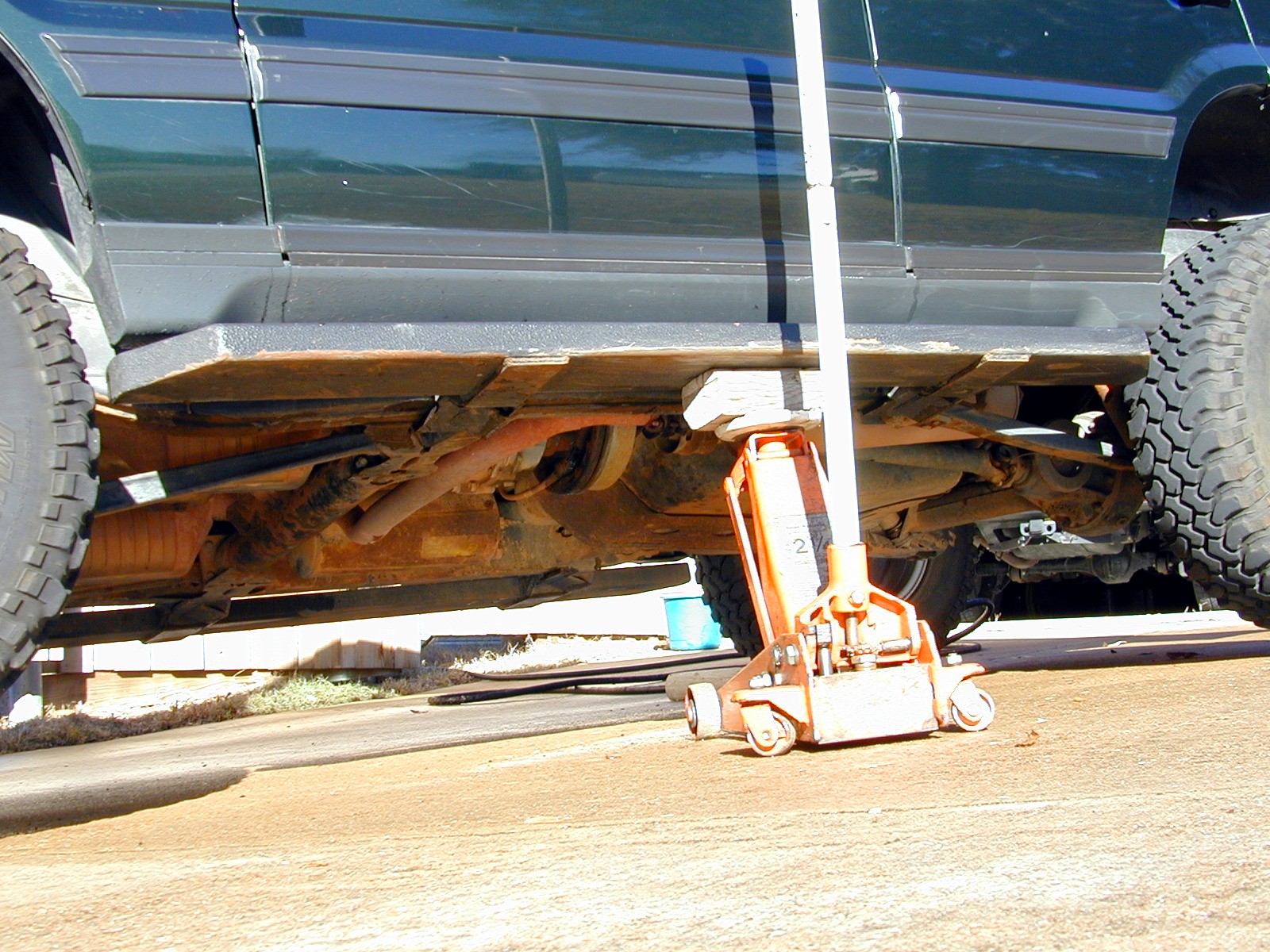

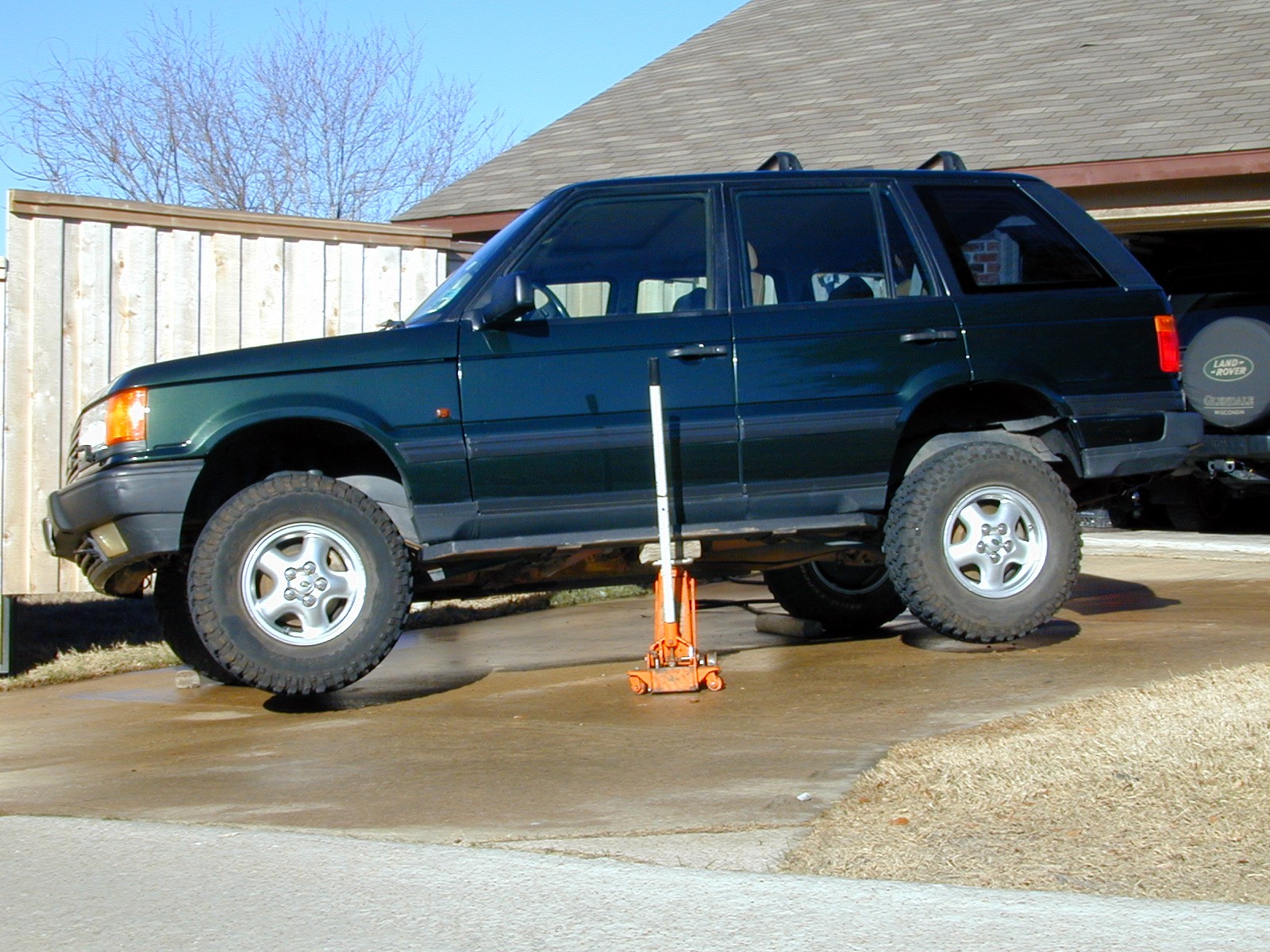

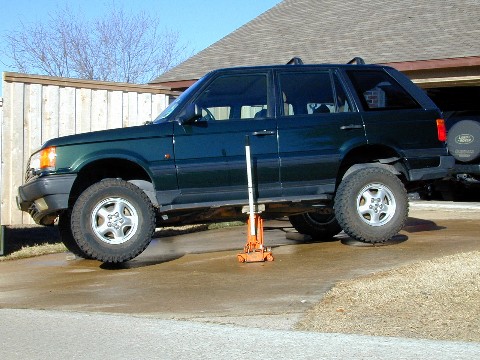

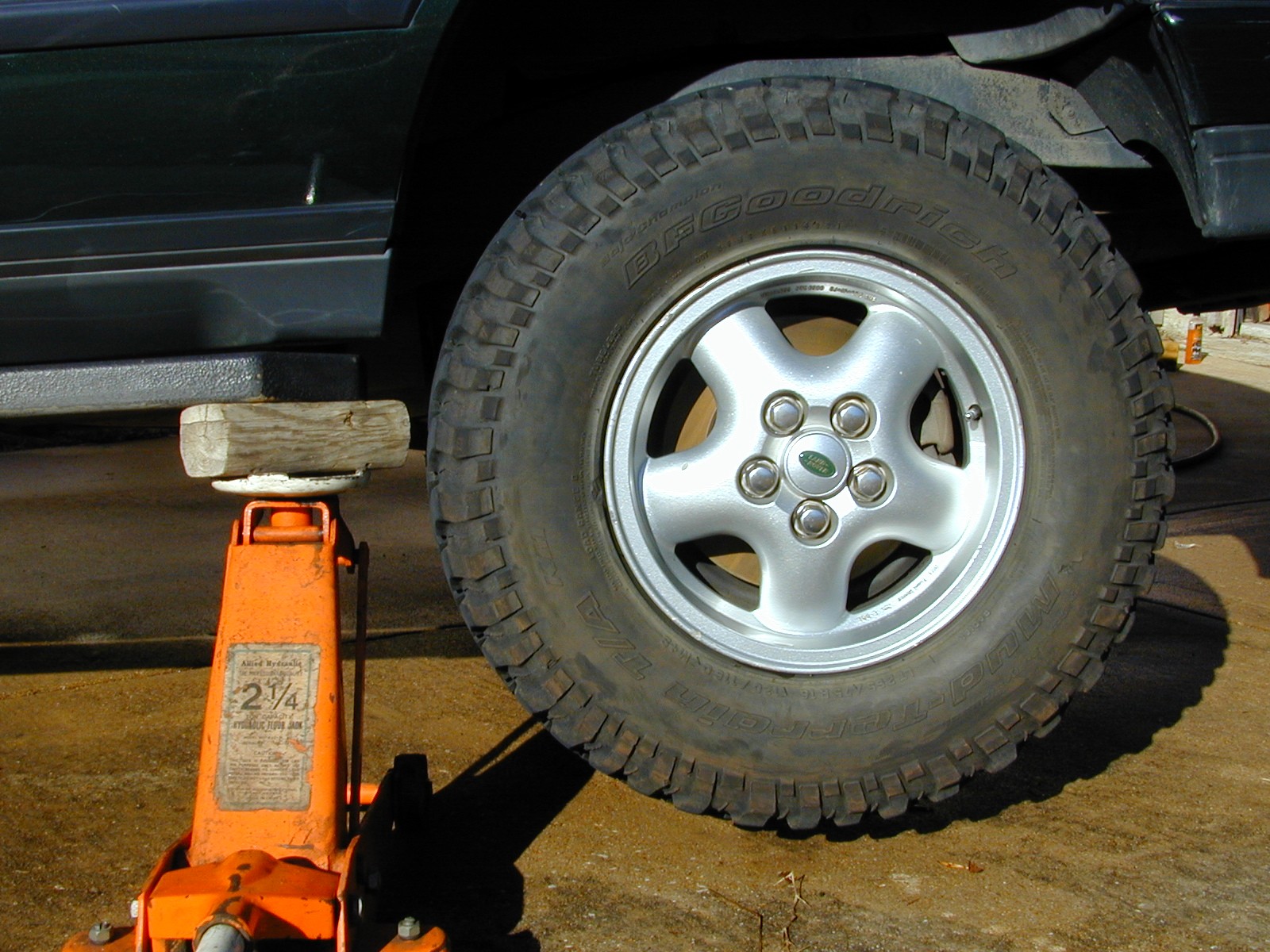

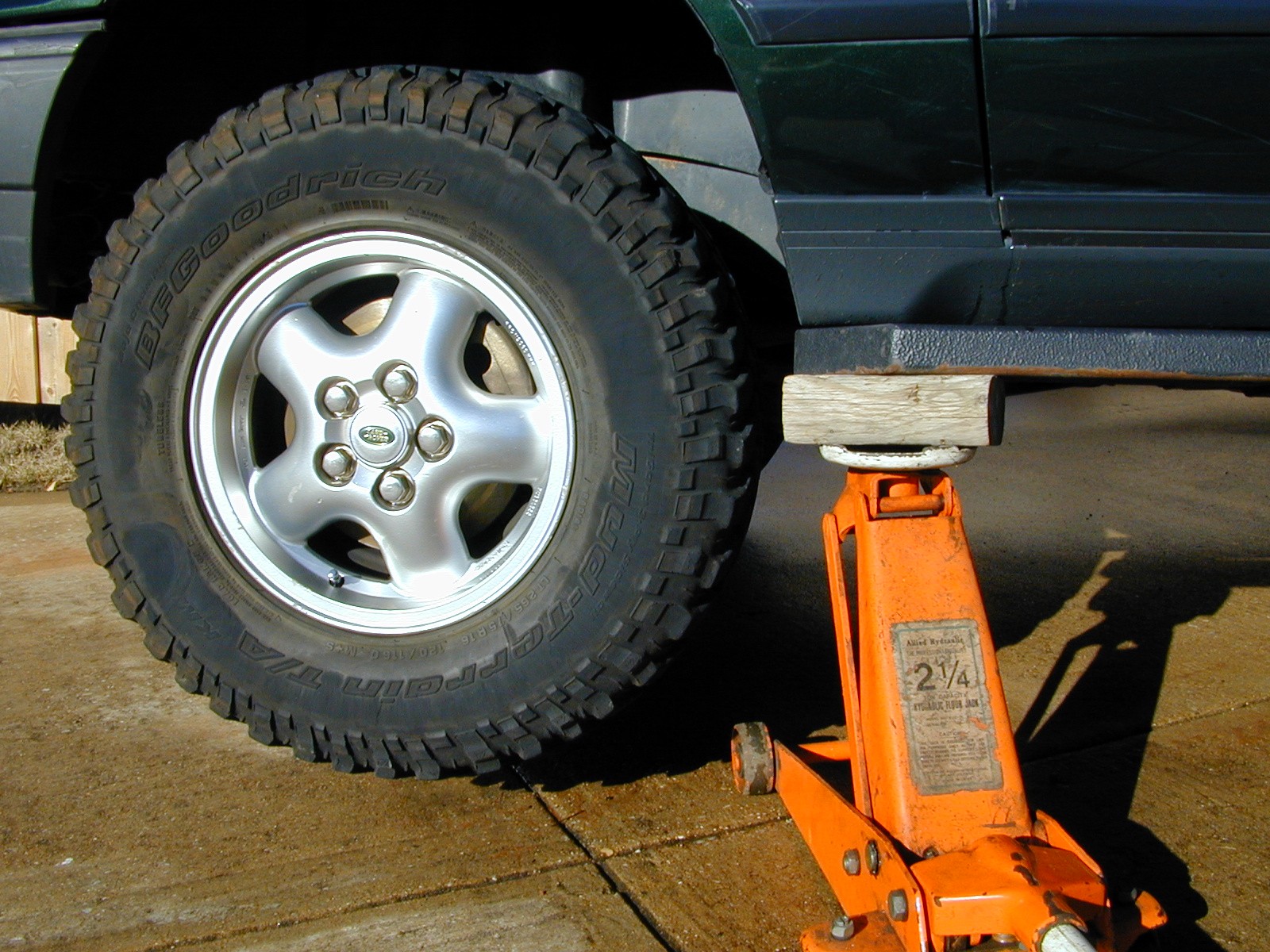

The sliders are strong enough to support the weight of the Ranger Rover at any point:

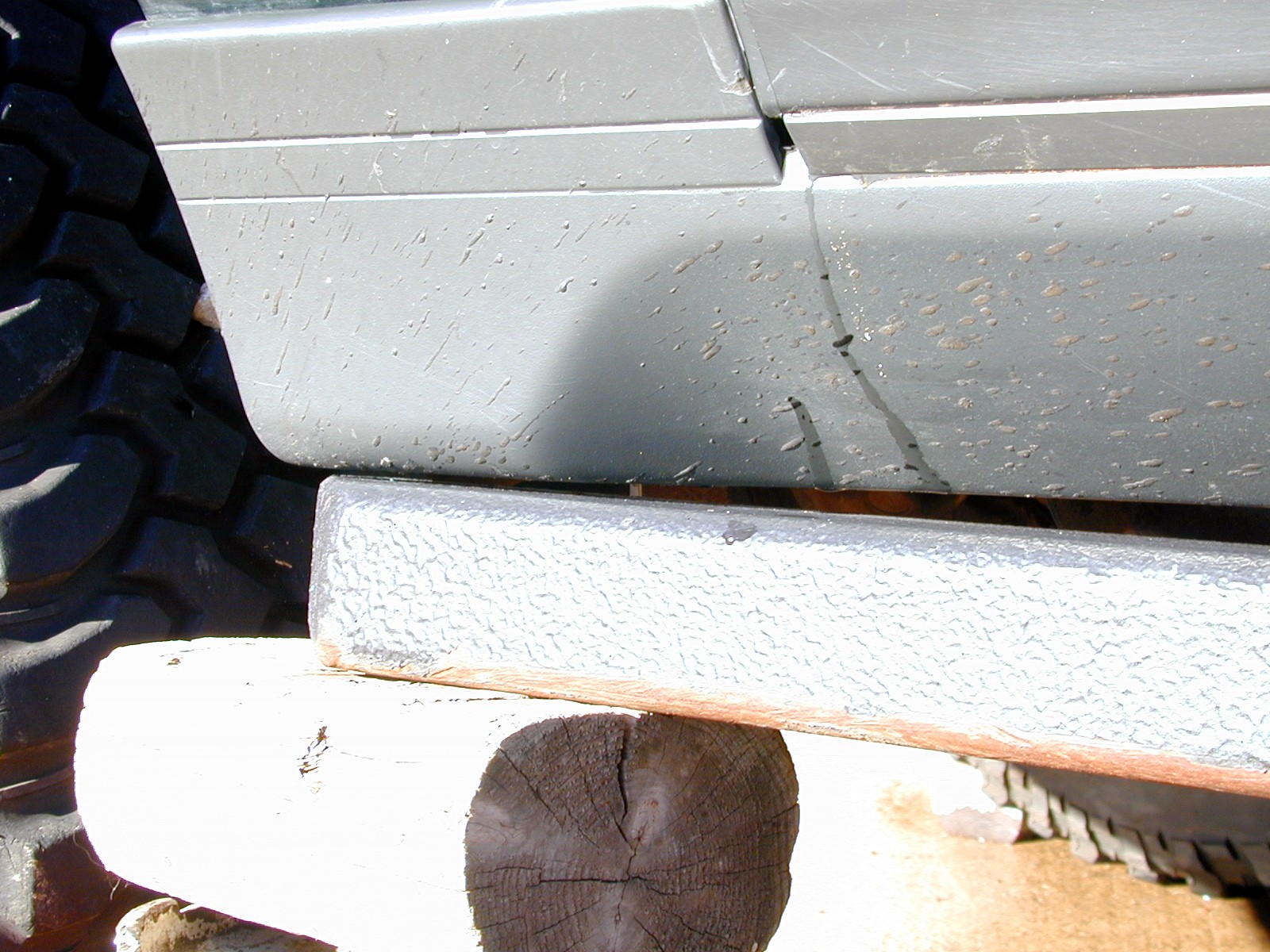

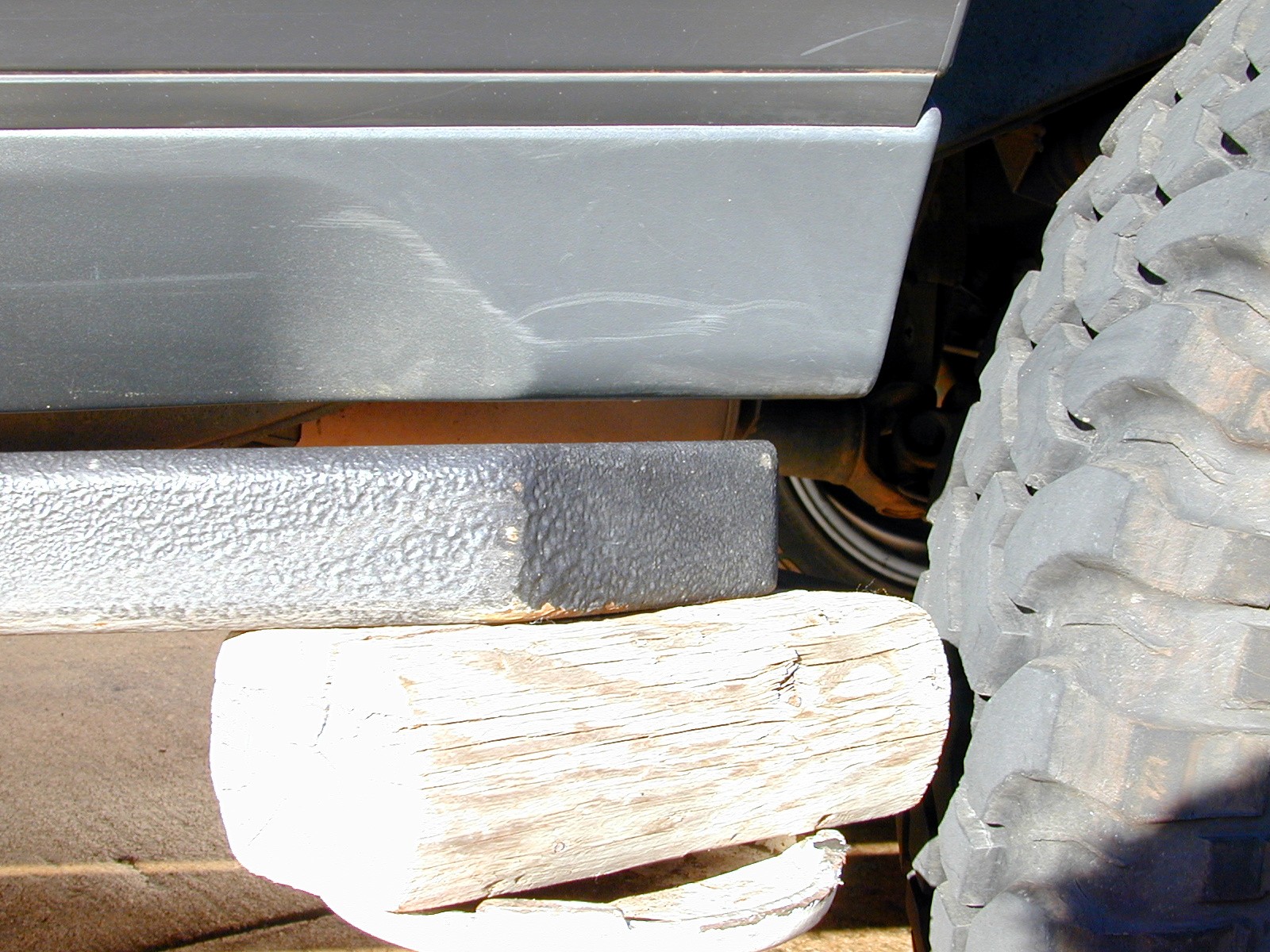

The design also accommodates the flex that occurs as the rubber mounts and other components flex without running into the body:

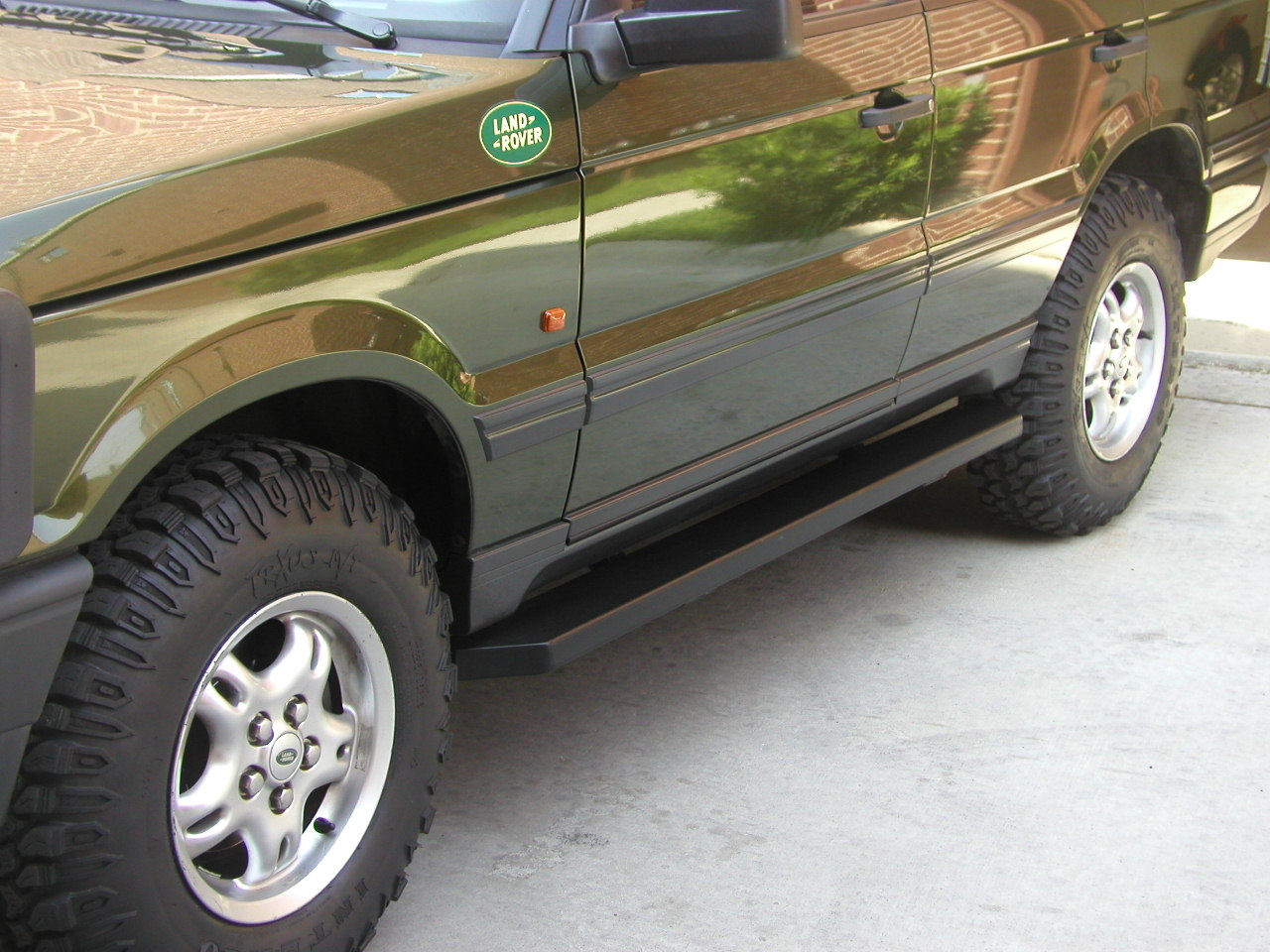

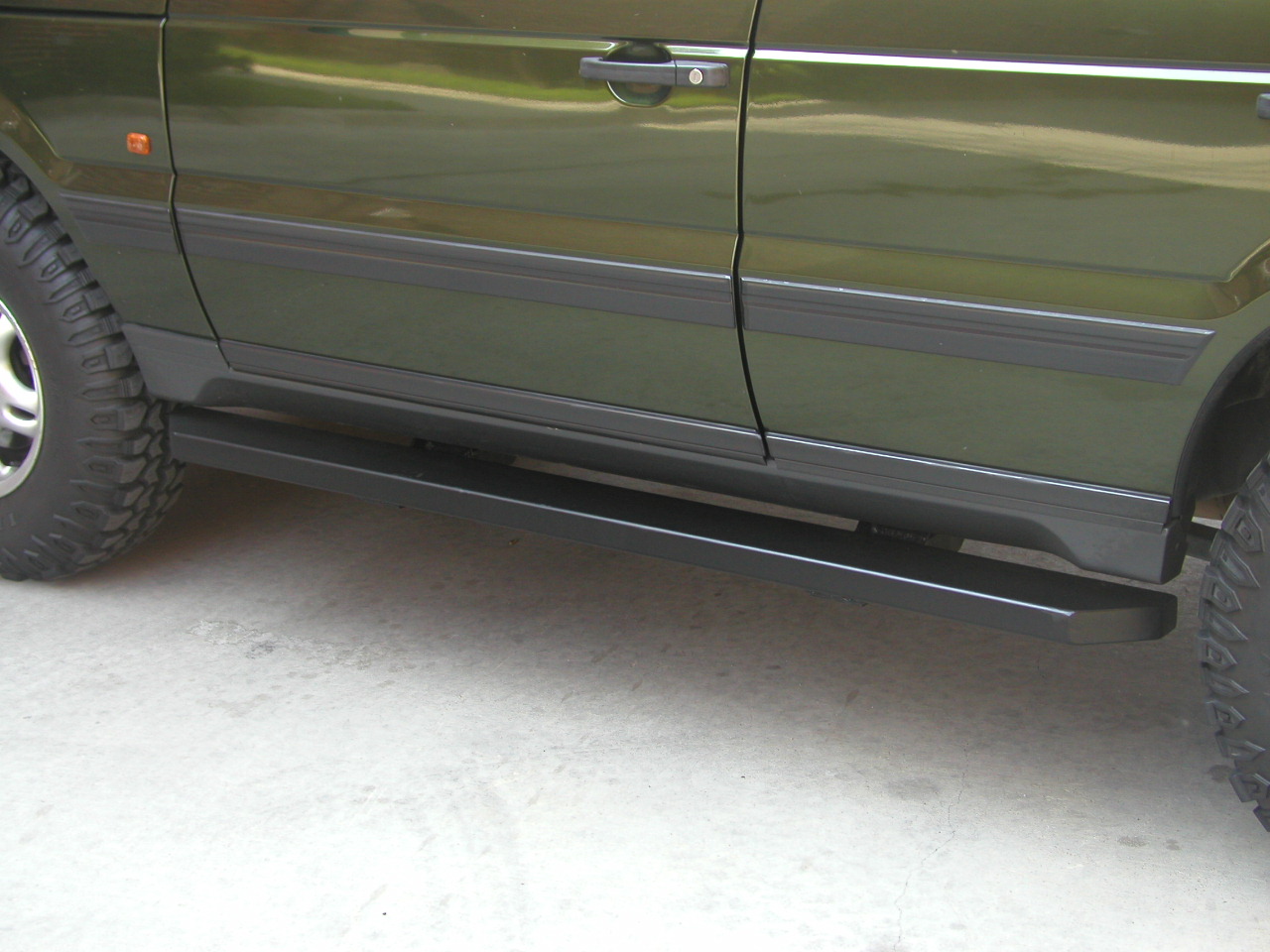

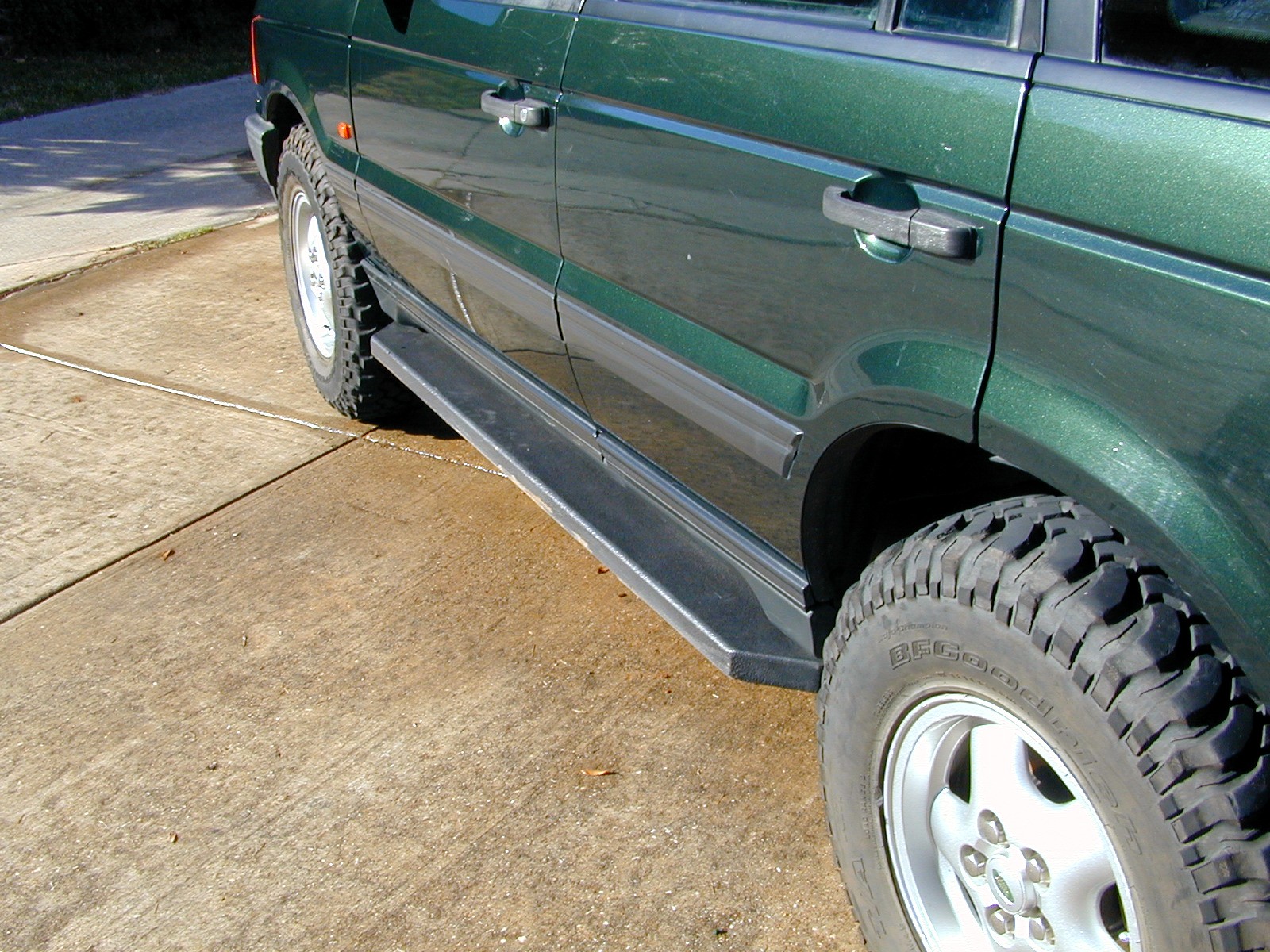

Completed
set of Sliders on a 1999 Ranger Rover; this customer chose to powered coat his
sliders Black:

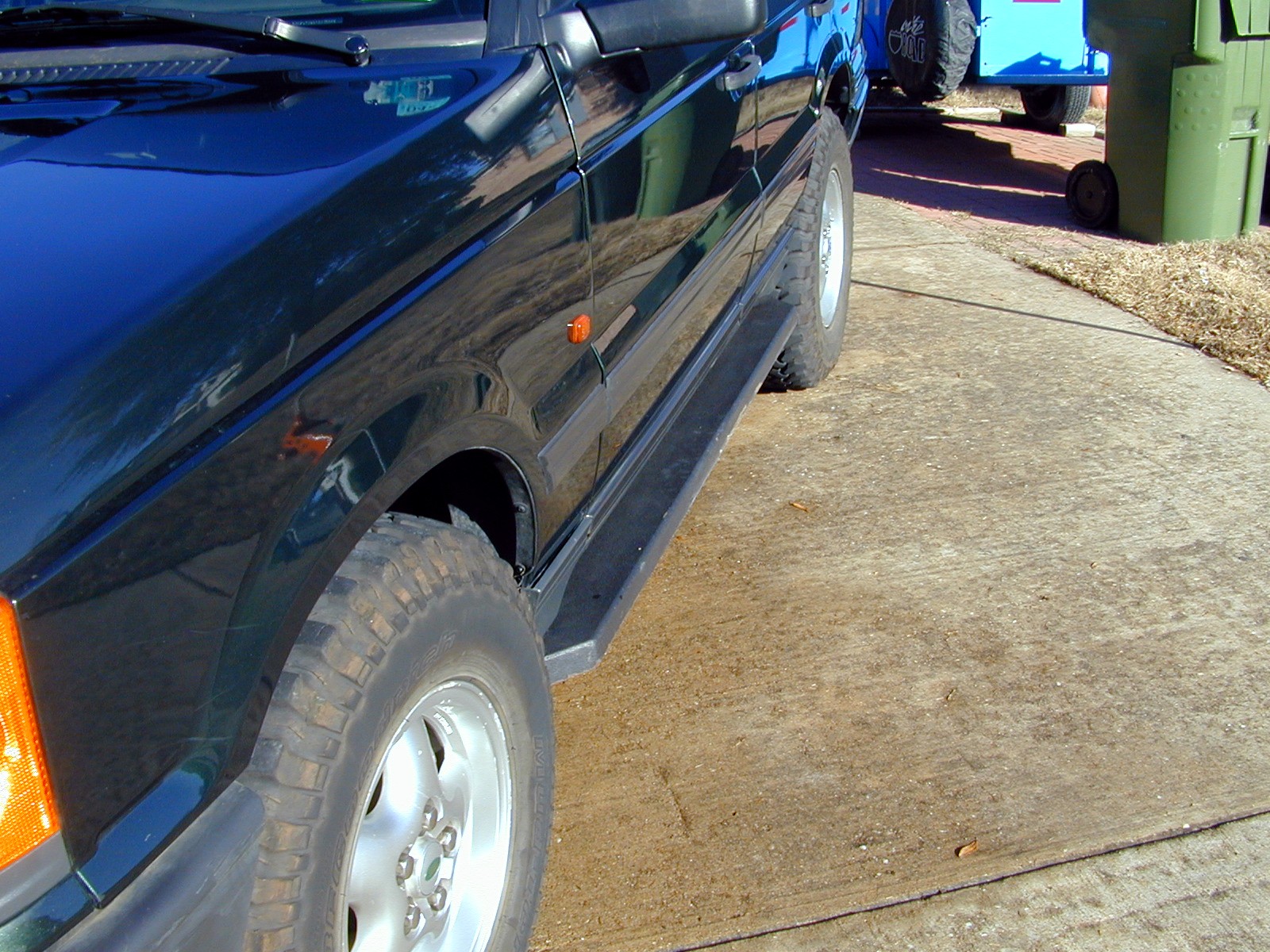

Here you
can get a perspective of how Sliders extend from the sill to provide some side
protect. Conversely, the sliders do not
encumber the your clearance from the side.

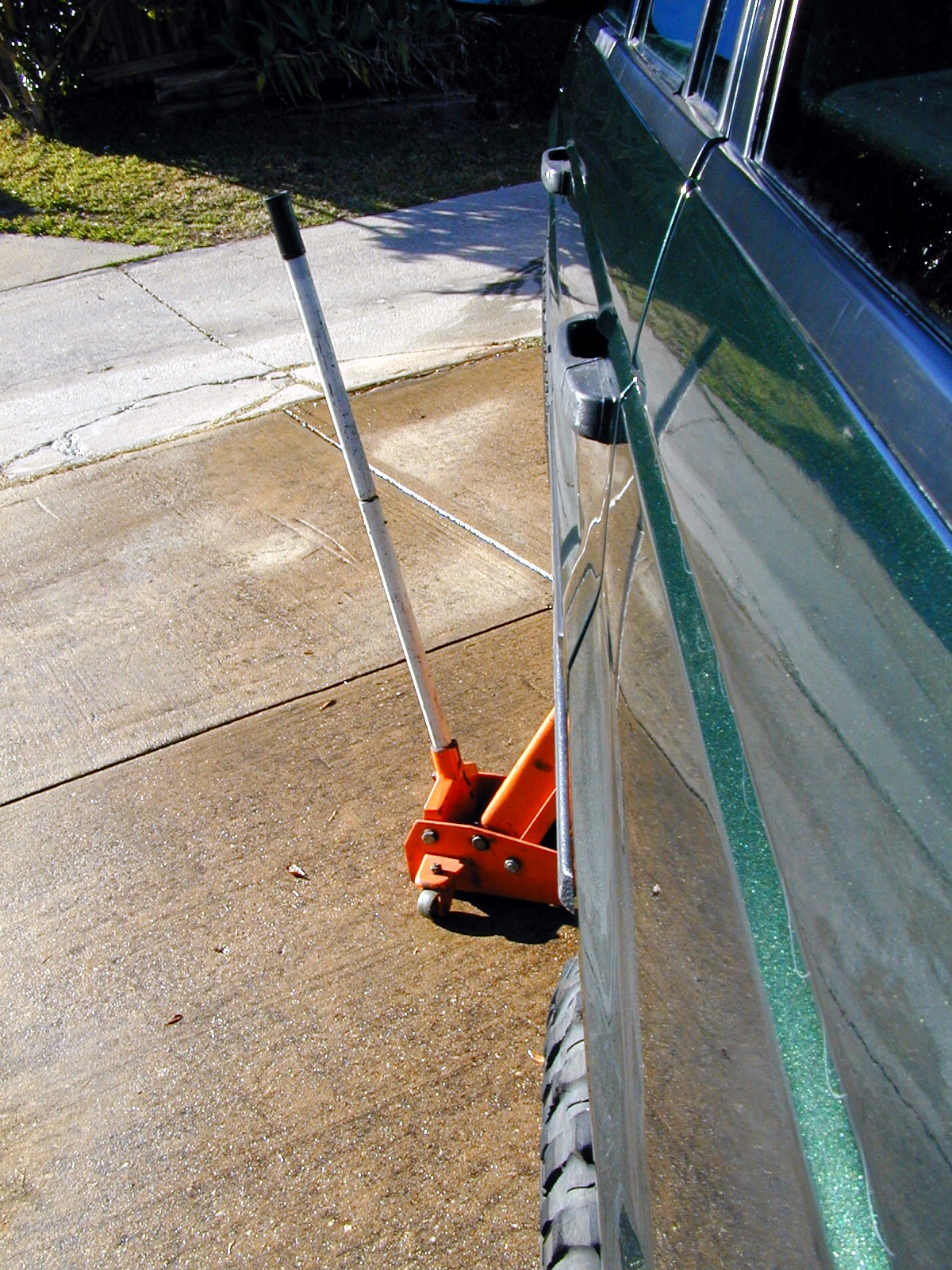

As you can see, they do not extend out more than the side of the body in
the middle of the door:
Some more
view of the sliders in standard driving condition:

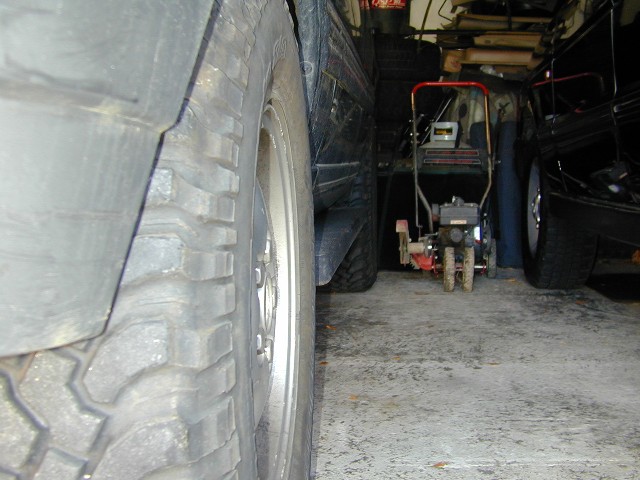

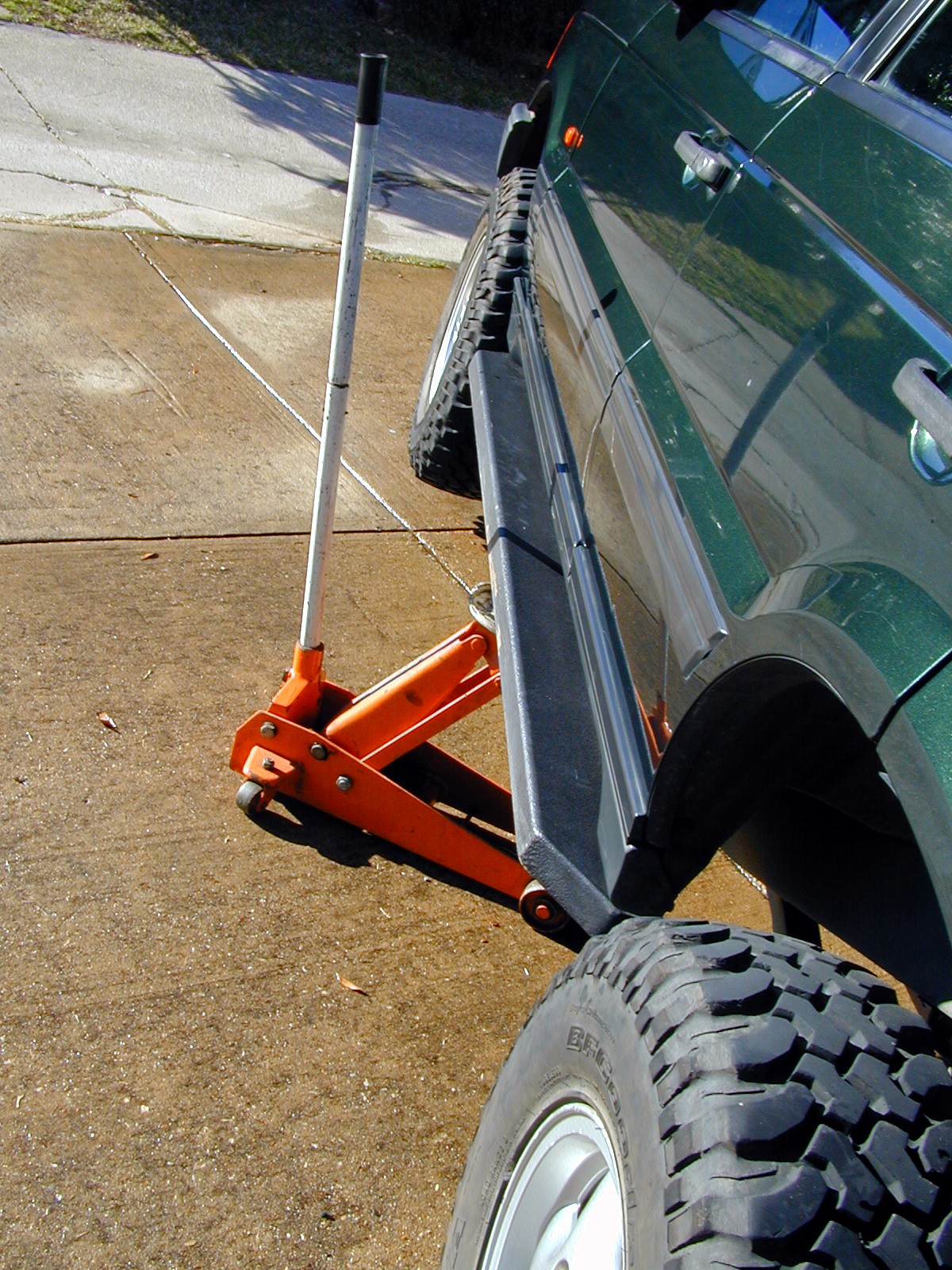

This photo
shows how the outer edge of the slider aligns with the outer edge of the tires:

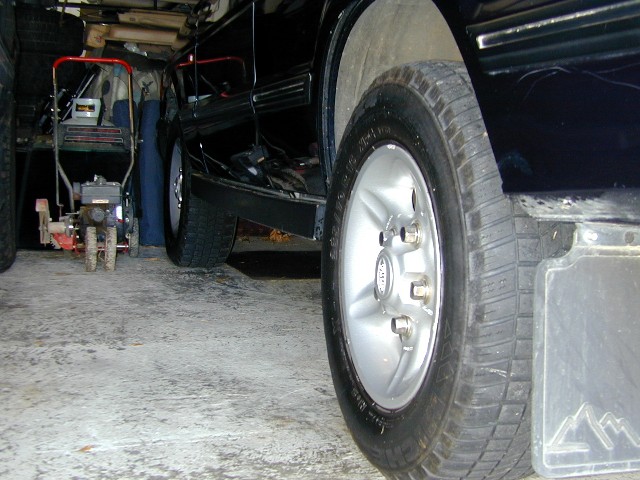

This is a
set up Atlantic British sliders on a 1997 Discovery for comparison.
